Product Details:
|
| Product Name: | Flake Ice Machine | Ice Head Size: | 1700*1200*1200mm |
|---|---|---|---|
| Ice Bin Size: | 1700*1650*2650mm | Daily Production: | 3000kgs / 24hours |
| Ice Storage: | 1500 Kgs | Cooling Mode: | Air Cooled / Water Cooled |
| Compressor: | Copeland (15HP) | Refrigerant: | R404A/R22 |
| Voltage: | 380V/50Hz/3Ph; 220V/60Hz/3Ph | Power: | 11.1KW |
| Material: | 304 Stainless Steel | Standard Ambient Temperature: | 25℃ |
| Standard Water Temperature: | 20℃ | Water Supply Pressure: | 0.1Mpa－0.5Mpa |
| Flake Ice Thickness: | 1.5~2.2mm | Flake Ice Temperature: | -5℃ |
| High Light: | PLC Flake Ice Machine Commercial,3000KGS Flake Ice Machine Commercial,Fresh Water Flake Ice Maker |
||

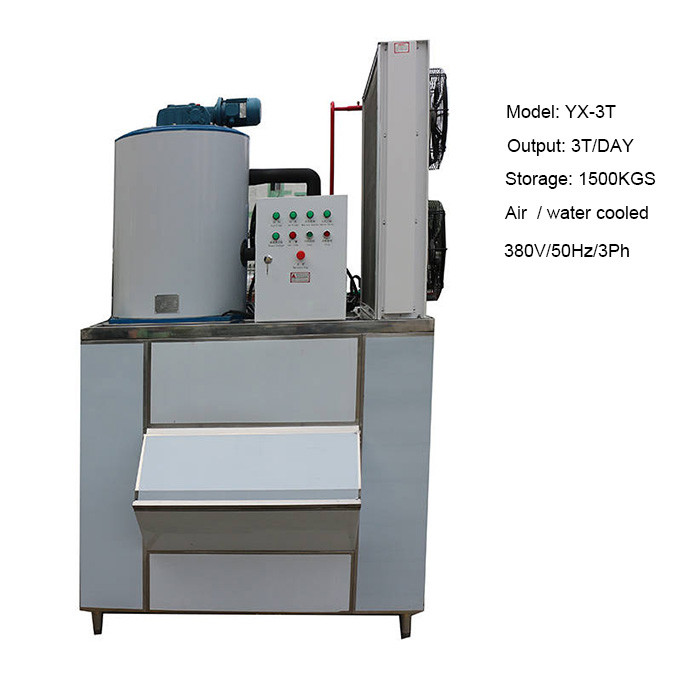

3 Tons Fresh Water Commercial Ice Flake Making Machine Air Cooled For Fishery
Microcomputer intelligent control: the machine is suing PLC control system with world famous brand componets, which control the whole ice making process, meanwhile it can protect the machine when there are water shortage, ice full, high/low pressure alarm, and motor reversal in order to guarrantee the machine run stable with less faults
Flake Ice Maker Features:
The flake ice machine is easy to operate, high standard of hygiene
Installation guidance support for your installation, debugging and operation if it necessary;
Flake Ice Maker Specifications:
| Product Name | Flake ice machine for fish |
| Model | YX-3T |
| Ice head size(L*D*H) | 1700*1200*1200mm |
| Ice storage (L*D*H) | 1700*1650*2650mm |
| Daily Production | 3000KGS/24H |
| Ice Ctorage Capacity | 1500KGS |
| Cooling system | air cooling/ water cooling |
| Voltage | 380V/50Hz/3P |
| Compressor | Copeland |
| Refrigerant | R404a /R22 |
| Power | 11.1KW |
Remark: the parameters offered above are for customer's reference only, and no further notification is provided in case of alterations of them
FAQ:
Q2: What is your warranty?
A:Our warranty is 12months after delivery. We always pay high attention to after sale service!! For those out of warranty, we have adequate parts.
