Air Cooled Fresh Water 5 Tons Flake Ice Machine

1 pcs
MOQ
negociation
Price

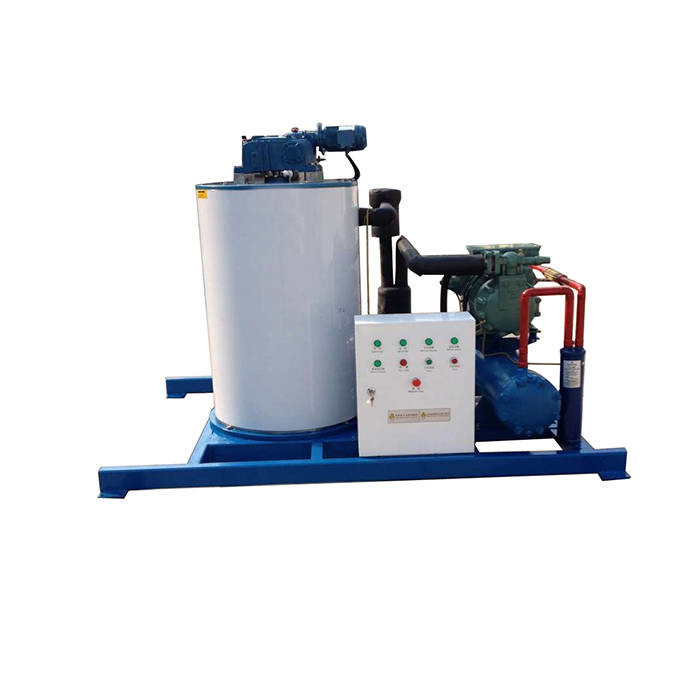

Air Cooled Fresh Water 5 Tons Flake Ice Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Flake Ice Machine 5tons
Ice Head Size: 2000*1650*1360mm
Daily Production: 5000kgs / 24hours
Cooling Mode: Air Cooled / Water Cooled
Compressor: Copeland /Bitzer/Bock
Refrigerant: R404A/R22
Voltage: 380V/50Hz/3Ph; 220V/60Hz/3Ph
Power: 22.55KW
Water Supply Pressure: 0.1Mpa-0.5Mpa
Flake Ice Thickness: 1.5~2.2mm
Flake Ice Temperature: -5℃
After-sales Service Provided: Online Support
Application: Chemical Industry, Mine, Fowl Buthery
High Light:

5 Tons Flake Ice Machine

,

Freshwater Flake Ice Machine

,

5 Tons Flake Ice Maker

Basic Infomation
Place of Origin: guangzhou, china
Brand Name: yxfridge
Certification: CE
Model Number: YX-5T
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7~15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500pcs per month
Product Description

Fresh Water Flake Ice Machine 5 tons Air Cooled For Chemical Industry





Flake Ice Maker Features:

  • The standard cooling mode is air cooled for a commercial ice machine. Can be designed to water cooling to meet customer need.
  • Microcomputer intelligent control: the machine is suing PLC control system with world famous brand componets, which control the whole ice making process, meanwhile it can protect the machine when there are water shortage, ice full, high/low pressure alarm, and motor reversal in order to guarrantee the machine run stable with less faults
  • Emergency Alarm: It makes you know immediately once the emergency happens
  • Cable Channel: All the wires packed in stainless steel channel, protects the wire, also makes the machine look neat and tidy
  • Automatic control: The whole system is automatically controlled and easy to use; Operation starts by merely switching on one button, and terminates automatically when ice is full;

  • Installation guidance support for your installation, debugging and operation if it necessary;





Flake Ice Maker Specifications:



Product Name Flake Ice Machine 5tons
Model YX-5T
Product size(L*D*H) 2000*1650*1360mm
Daily Production(T/24hrs) 5T
Cooling system air cooling/ water cooling
Voltage 380V/50Hz/3P
Compressor Copeland /Bitzer/ Bock
Refrigerant R404a /R22
Power(KW) 22.55
Cooling power(KW) 35
Reductor power(KW) 0.37
Weight(KGS) 960



Remark: the parameters offered above are for customer's reference only, and no further notification is provided in case of alterations of them



Applications: flake ice maker is widely used in the field of aquatic food&meat product processing, sowl butchering, medical facilities, leather processing, dye chemical industry, mines, concrete construction project etc

Air Cooled Fresh Water 5 Tons Flake Ice Machine 0



FAQ:

Q1: How about the after-sales services?
A: Provide 1 year warranty for our machine. For after sales service, once out of work, you only need to send us pictures or video about the fault, we will mail you the solution to solve problems within 24 hours.



Q2: What's the delivery time of your machine?
A: 1~5ton, 30 days since the deposit arrived at our account, 5~20 ton, 45 days. (based on the electricity 380V/50Hz/3p, some special design lead time will be longer )
